How to Configure MS SQL Server Replication: Complete Walkthrough

Microsoft SQL Server (MS SQL Server) is a database management software that can be installed on Windows Server operating systems. Databases are important for all types of companies and many software solutions use databases that can be centralized and distributed. Availability of databases and data relevance are critical for businesses, making backup and replication of databases a necessity. With MS SQL Server replication, it is possible to create an identical copy of your primary database or synchronize changes between multiple databases, and maintain data consistency and integrity. This blog post lists SQL Server replication types, explains how replication in SQL Server works, and describes how to perform SQL Server replication.

The blog post covers:

  • Terminology
  • MS SQL server replication types
  • Requirements
  • Basic recommendations
  • Configuring the environment
  • Preparing for replication
  • Configuring database replication
  • Configuring distribution
  • Configuring the publisher
  • Configuring the subscriber
  • Finalizing replication configuration
  • Checking how replication works

NAKIVO Backup & Replication offers multiple data protection and recovery options in a single pane of glass. To try out our product's capabilities in your environment and see all of its benefits for yourself, request a live demo by one of our engineers or download a full-featured free trial today.

Terminology Used for MS SQL Server Replication

Before diving into configuration and setting up MS SQL Server replication, let’s first briefly go over the main terms and the replication models.

Articles are the basic units to be replicated, such as tables, procedures, functions and views. Articles can be scaled vertically or horizontally by using filters. Multiple articles can be created for the same object.

A publication is a logical collection of articles. This is the final set of entities from the database designated for replication.

A filter is a set of conditions for an article. MS SQL Server replication allows you to use filters and select custom entities for replication, which, as a result, reduces traffic, redundancy and amount of data stored in a database replica. For example, you can select only the most critical tables and fields by using filters and replicate only this data.

MS SQL Server replication scheme

There are three main roles in MS SQL database replication: distributor, publisher and subscriber.

A distributor is an MS SQL database instance configured for collecting transactions from publications and for distributing them to subscribers. A distributor acts as a database for storing replicated transactions. A distributor database can be considered as the Publisher and the Distributor at once. In the local distributor model, a single MS SQL Server instance runs both the Publisher and the Distributor. A remote distributor model can be used when you want subscribers to be configured to use a single MS SQL Server instance to get different publications (centralized distribution). In this model, the Publisher and the Distributor run on different servers.

A publisher is the main database copy on which publication is configured, making data available to other MS SQL servers that are configured to be used in the replication process. The Publisher can have more than one publication.

A subscriber is a database that receives the replicated data from a publication. One Subscriber can receive data from more than one publisher and publication. A single-subscriber model is used when there is one Subscriber. A multi-subscriber model is used when multiple subscribers are connected to a single publication.

Agents are MS SQL Server components that can act as background services for relational database management system and are used to schedule automated execution of jobs, such as MS SQL database backup and replication. There are five types of agents: Snapshot Agent, Log Reader Agent, Distribution Agent, Merge Agent and Queue Reader Agent.

Subscription is a request for a copy of a publication that must be delivered to the Subscriber. The subscription is used to define the publication data that must be received, and where and when this data will be received. There are two types of subscription — push and pull.

Push subscription: changed data is forcibly transmitted from a Distributor to the Subscriber database. No request from the Subscriber is needed.

Pull subscription: the changed data made on the Publisher is requested by a Subscriber. The Agent runs on the side of the Subscriber.

A subscription database is a target database in the MS SQL replication model.

Metadata is the data used to describe entities of the database. There is a wide range of built-in metadata functions that allow you to return information about the MS SQL Server instance, database instances and database entities.

In the multiple publishersmultiple subscribers model, the Publisher can act as the Subscriber on one of the MS SQL servers. Make sure you avoid any potential update conflicts when using this MS SQL Server replication model.

MS SQL Server Replication Types

MS SQL Server replication is a technology for copying and synchronizing data between databases continuously or regularly at scheduled intervals. As for the replication direction, MS SQL Server replication can be: one-way, one-to-many, bidirectional and many-to-one. There are four MS SQL Server replication types: snapshot replication, transactional replication, peer-to-peer replication and merge replication.

Snapshot replication

Snapshot replication is used to replicate data precisely as it appears at the moment when the database snapshot was created. This replication type can be used when data is changed infrequently; when it is not critical to have a database replica that is older than a master database; or a large volume of changes is made within a short period of time. No change tracking is performed for snapshot replication. For example, snapshot replication can be used when exchange rates or price lists are updated once per day and must be distributed from a main server to servers in branch offices.

MS SQL snapshot replication

Transactional replication

Transactional replication is the periodic automated replication when the data is distributed from a master database to a database replica in real-time (or near-real-time). Transactional replication is more complex than snapshot replication. Not only is the final state of a database replicated, all made transactions are also replicated, which makes it possible to monitor the entire transaction history on the database replica. In the beginning of the transactional replication process, a snapshot is applied to the Subscriber and then data is continuously transferred from a master database to a database replica after being changed. Transactional replication is widely used as one-way replication.

MS SQL transactional replication

Examples and use cases for transactional replication:

  • Creating a database server with a database replica that can be used to perform failover if a main database server fails.
  • Getting reports about operations performed in branch offices by using multiple publishers in branch offices and one subscriber in the main office.
  • Changes should be replicated as soon as possible after they happen.
  • Data on a source database is changed frequently.

Peer-to-peer replication

Peer-to-peer replication is used to replicate database data to multiple subscribers at the same time. This MS SQL Server replication type can be used when your database servers are distributed across the globe. Changes can be made on any of the database servers. Changes are propagated to all database servers. Peer-to-peer replication can help scale out an application that uses a database. The main working principle is based on transactional replication.

MS SQL Peer-to-peer replication

Below you can see how MS SQL Server peer-to-peer replication can be used between database servers that are distributed across the globe.

MS SQL peer-to-peer replication in a distributed environment

Merge replication

Merge replication is a type of bidirectional replication that is usually used in server-to-client environments for synchronizing data across database servers when they cannot be connected continuously. When the network connection is established between both database servers, merge replication agents detect changes made on both databases and modify databases to synchronize and update their state. Merge replication is similar to transactional replication, but data is replicated from the Publisher to the Subscriber and inversely.

MS SQL merge replication

This type of database replication is the most complex of all MS SQL Server replication types and is rarely used. For example, merge replication can be used by multiple peer stores that work with a shared warehouse. Each store is permitted to change the information in the warehouse database and at the same time all stores must have the updated state of their databases after the shipment of goods or delivery of supplies to the warehouse. Merge replication can be used in cases where the updated information must be available for the main (or central) database and branch databases simultaneously.

Requirements for MS SQL Server Replication

The following ports must be opened for inbound traffic:

TCP 1433, 1434, 2383, 2382, 135, 80, 443;

UDP 1434.

Don’t forget to configure Windows firewall and enable the appropriate ports for inbound traffic on each host before installing MS SQL Server. Hosts attended in MS SQL replication must resolve each other by a hostname.

Before configuring MS SQL Server replication, the following software must be installed for MS SQL Server:

  • .NET Framework – a set of libraries
  • MS SQL Server – the database server software
  • MS SQL Server Management Studio (SSMS) – software for managing MS SQL databases with the GUI (graphical user interface).

Note that if you install MS SQL Server 2016 on the first machine where the source database is located, the best solution is to install MS SQL Server 2016 on the second machine for the database to function properly. Replication will not work if you install MS SQL Server 2008 on the second machine. For example, if you want to configure MS SQL transactional replication, you can use the second database server (where the Subscriber is configured) of a version within two versions of the source database server on which the Publisher is configured. More precisely, if the Publisher version on MS SQL Server is 2016, the Distributor can be configured on the 2016, 2017 and 2019 versions, and the Subscriber can be configured on MS SQL Server 2012, 2014, 2016, 2017 and 2019.

Basic Recommendations for MS SQL Database Replication

Before configuring the environment for MS SQL Server, here are some factors to consider:

  • There are limitations to Identity fields and triggers.
  • Publications can contain only tables with the primary key.
  • It is recommended that creating snapshots scheduling not be used for large databases due to consumption of computing resources.
  • Be careful when changing data in the database replica residing on the Subscriber, because when a transaction that modifies data is coming and that data has been edited or deleted, replication can stop until you resolve this issue.

Configuring the Environment

If you are going to configure MS SQL replication for the first time, it is recommended that you practice in a test environment, for example, configuring replication in SQL servers running on virtual machines. Two hosts running Windows Server 2016 and MS SQL Server 2016 are used in this tutorial to explain MS SQL Server replication. Let’s take a look at the configuration of the test environment used for writing this blog post to have a better idea of the configuration of MS SQL Server replication.

Host 1

IP address: 192.168.101.101

Hostname: MSSQL01

MS SQL Server Instance ID: MSSQLSERVER1

Host 2

IP address: 192.168.101.102

Hostname: MSSQL02

MS SQL Server Instance ID: MSSQLSERVER2

Both machines have disk C: and disk D: in their disk configuration.

You can temporarily disable Windows firewall when you install MS SQL Server to practice configuring MS SQL Server replication.

This blog post does not go into how to install MS SQL Server because this tutorial focuses on configuring MS SQL Server replication. In this example, both MS SQL servers are installed without PolyBase.

Check that you have installed the features required for MS SQL Server replication once the MS SQL Server installation is complete. Database engine services, such as SQL Server replication and R-Services, must be selected during MS SQL Server installation. The default installation path is used in this example (C:\Program Files\Microsoft SQL Server).

The components needed for MS SQL Server replication must be installed when installing SQL Server

Other settings:

  • The mixed authentication mode (Windows authentication and MS SQL Server authentication)
  • Data root directory: D:\MSSQL_Server\
  • System database directory: D:\MSSQL_Server\MSSQL13.MSSQLSERVER1\MSSQL\Data
  • User database directory: D:\MSSQL_Server\MSSQL13.MSSQLSERVER1\MSSQL\Data
  • User database log directory: D:\MSSQL_Server\MSSQL13.MSSQLSERVER1\MSSQL\Data
  • Backup directory: D:\MSSQL_Server\MSSQL13.MSSQLSERVER1\MSSQL\Backup

Once MS SQL server 2016 and SQL Server Management Studio are installed on the machines, you can prepare your MS SQL servers for database replication.

Preparing for MS SQL Server Replication

You have to configure the servers before you can start database replication. In our example, one Windows account will be used for MS SQL Server replication agents.

Create the mssql user on both servers and set the same password.

The mssql user is a member of the following groups in this example:

  • Administrators (local administrators on local machines, not domain administrators)
  • SQLRUserGroupMSSQLSERVER1
  • SQLServer2005SQLBrowserUser$MSSQL01

You can edit users and groups by pressing Win+R, opening CMD and running the lusrmgr.msc command.

Two Windows Server machines used in this example are not in Active Directory. If you use Active Directory, you can create the mssql user on the domain controller.

Run SQL Server Management Studio.

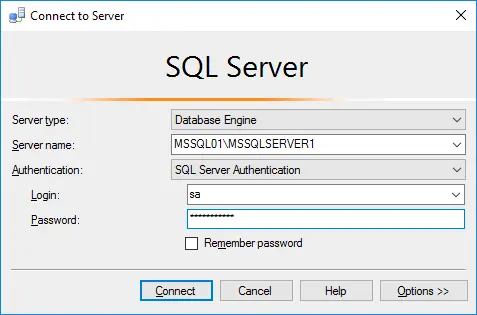

Log in (see screenshot) as sa by using the SQL Server authentication.

MSSQL01\MSSQLSERVER1 is the hostname and the MS SQL instance name on the first server.

MSSQL02\MSSQLSERVER2 is the hostname and the MS SQL instance name on the second server.

Log into MS SQL Server instance by using SQL Server authentication

Similarly, you can connect on the second server (MSSQL02) to the second MS SQL server instance (MSSQLSERVER2). You can also connect to the second MS SQL Server instance (MSSQLSERVER2) from the first MS SQL Server (MSSQL01) by entering the appropriate credentials in SQL Server Management Studio. You can connect to both MS SQL Server instances (MSSQL01 and MSSQL02) in the single instance of SQL Server Management Studio. To do this, in the object Explorer, click Connect > Database engine. In this tutorial, we will connect to MSSQLSERVER1 from MSSQL01 and to MSSQLSERVER2 from MSSQL02 by using SQL Server Management Studio to configure the MS SQL servers.

Once you log into the MS SQL Server instance, you will see that the Agent is not running. By default, the SQL Server Agent doesn’t start automatically. You can start this service manually, but it is better co configure this service to start automatically after Windows boot.

Starting SQL Server agent is needed for replication in SQL Server

Configure the Agent service to start automatically.

Press Win+R, run cmd and run the services.msc command.

Open the SQL Server Agent service properties and set Startup Type to Automatic.

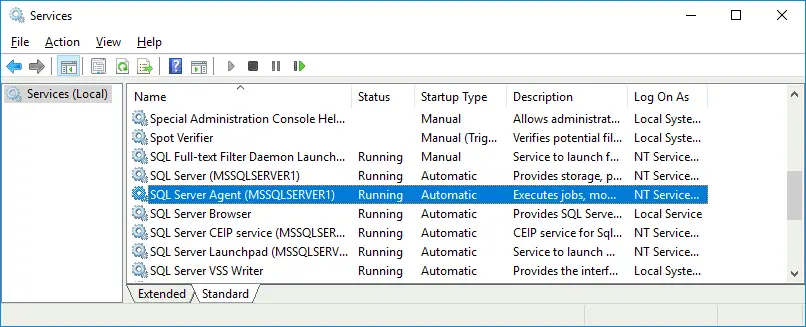

SQL Server Agent is running and starts automatically after Windows boot

Configuring users for MS SQL Server

After connecting to the MSSQLSERVER1 instance in SQL Server Management Studio, go to Object Explorer and open Security > Logins.

Right click Logins and select New Login. Select Windows authentication.

Enter the login name mssql in the General section.

Click Search, then hit Check names to confirm and hit OK twice to save the settings.

Configuring users and permissions for replication in SQL Server

Now the MSSQL01\mssql Windows user is added to the list of users who can log into the database (similarly, add the mssql user to logins on the second machine MSSQL02 in the SQL Server Management Studio).

Add the mssql user to the sysadmins server roles in the Security configuration of the database in the SQL Server Management Studio.

Go to MSSQL01\MSSQLSERVER1 > Server roles, right click sysadmin and open Properties.

In the Members page click Add, enter the name of your user mssql and click Check names.

Tick the checkbox of username MSSQL01\mssql and hit OK.

Adding a user to server roles on MS SQL Server

Perform the same configuration on your second machine (MSSQL02 in this case).

Reboot both machines.

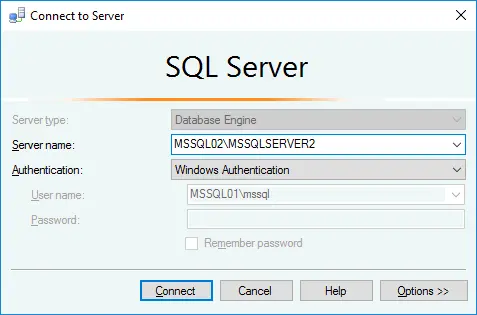

Now you can log in by using Windows authentication on both servers.

Log into MS SQL Server instance by using Windows authentication

Importing a database from a backup

Let’s import a sample database from a backup and then replicate the database from the first machine to the second machine. The AdventureWorks2016 database is used as a sample database in this example.

Copy the AdventureWorks2016.bak database backup file to your MSSQL backup directory. In our case, this directory on the first server is D:\MSSQL_Server\MSSQL13.MSSQLSERVER1\MSSQL\Backup\

Import a sample database. On the first machine in SQL Server Management Studio go to MSSQL01\MSSQLSERVER1, right click Databases and select Restore Database in the context menu.

Restoring a sample database to reveal MS SQL Server replication configuration

In the Restore Database window, select the needed parameters.

Source: Device.

Click on the three dots to browse the database backup file.

In the Select Backup Devices window, select backup media type: file.

Click Add.

Select the needed .bak file - D:\MSSQL_Server\MSSQL13.MSSQLSERVER1\MSSQL\Backup\AdventureWorks2016.bak

Hit OK.

Hit OK once again.

The AdventureWorks2016 database was restored successfully.

Restoring a sample database in MS SQL Server

You can import the database from a backup on the second machine, where the database replica will be running. This approach allows you to reduce network traffic because your replication will start with replicating the changes to the existing database, but not copying the entire database data to an empty database.

Restore the database from a backup on the second server and rename the database to AdventureWorks2016r, where “r” means “replica”. Finally, we have:

Hostname\MSSQL instance name Database name
MSSQL01\MSSQLSERVER1 AdventureWorks2016
MSSQL02\MSSQLSERVER2 AdventureWorks2016r

After importing a database, you have to perform some tuning to prepare your MS SQL servers.

On the MSSQL01 machine, go to MSSQL01\MSSQLSERVER1 > Security > Logins, select MSSQL01\mssql. Right click (or double click) mssql user and select Properties.

In Server Roles, tick the checkbox next to the dbcreator role.

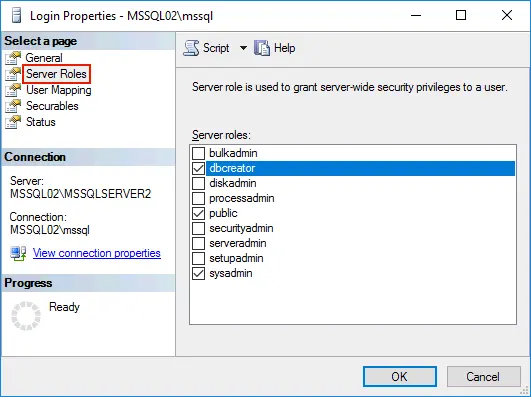

Enabling the dbcreator role for mssql user

On the User Mapping page, select users mapped to this login and tick the AdventureWorks2016 database checkbox (select AdventureWorks2016r on the second server accordingly).

In the database role membership section, tick the db_owner checkbox.

Configuring user mapping on MS SQL Server

Hit OK to save the settings.

Perform a similar configuration on the MSSQL02 machine. Then you can configure MS SQL Server components needed for database replication.

Configuring Database Replication

Configuring replication in a graphic mode is the most convenient method. To better understand how to configure replication in SQL server, there are screenshots to demonstrate the workflow. The next configuration is performed in SQL Server Management Studio. Transactional database replication is explained in this example because it is one of the most used MS SQL Server replication types.

The view on the main database server (MSSQL01\MSSQLSERVER1) and the view on the second server (MSSQL02\MSSQLSERVER2) in SQL Server Management Studio appear on the screenshot below.

The view of two MS SQL Server instances in MS SQL Server Management Studio

Configuring Distribution

Distribution can be used for multiple publishers and subscribers. In this example, Distribution is configured on the main server on which a source database is stored. On the main server (MSSQL01\MSSQLSERVER1), right click Replication and, in the context menu, select Configure Distribution.

Configuring Distribution for MS SQL Server replication'

Configure Distribution Wizard opens.

Distributor. Select the current database instance running on the main server (MSSQL01\MSSQLSERVER1) to act as the Distributor in this example. Hit Next for each step in the Wizard to continue.

SQL Server Agent Start. If you have not configured MS SQL Server Agent to start automatically as explained above, the following message will be displayed. Select Yes, configure the SQL Server Agent service to start automatically.

Configuring the Distributor and MS SQL Server Agent service startup options

Snapshot Folder. You can leave the default path here. A snapshot is needed for initializing replication. Make sure that there is enough free space on the disk where your snapshot directory is located. The amount of free space must correspond to at least the size of a replicated database.

Distribution Database. Enter the distribution database name. You can leave the default name (distribution) and folders for the distribution database file and log file.

Configuring snapshot folder and distribution database folders

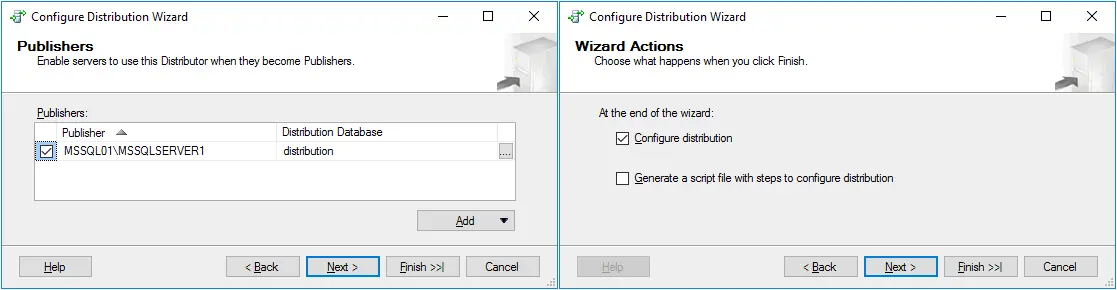

Publishers. Define MS SQL Server replication publishers that can access the Distributor. Tick the checkbox near the distribution database name on the primary MS SQL Server instance (that hosts a source database that will be replicated). In this example, this is the MSSQL01\MSSQLSERVER1 instance and the distribution database name is distribution.

Wizard Actions. Tick the Configure distribution checkbox to configure distribution during the final step of the wizard. In this example, we will not generate a script file to be executed later.

Selecting the Publisher and the distribution database

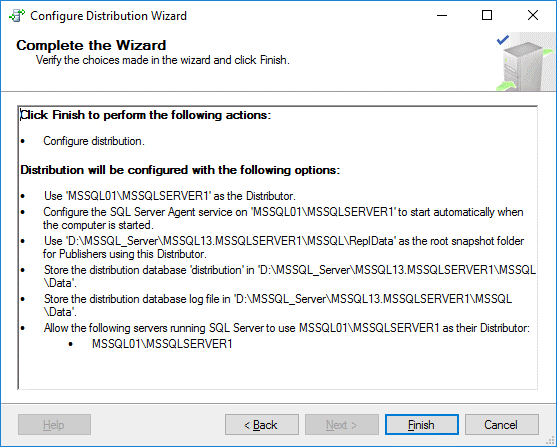

Complete the Wizard. Check the Distribution configuration summary and hit Finish to create the Distributor.

Finishing configuring distribution for MS SQL Server replication

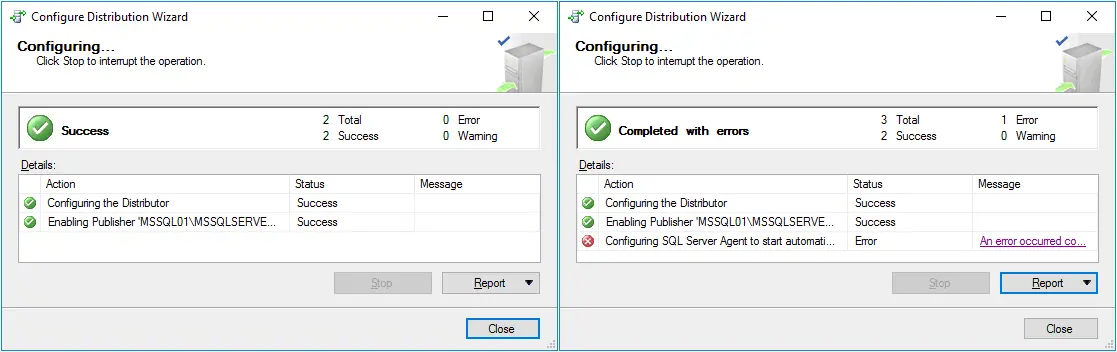

Success status should appear if the Distributor was created and configured successfully.

Configuring the Distributor

If you see that an error occurred when configuring SQL Server Agent to start automatically, go to services configuration and check the startup mode of SQL Server Agent (see how to configure Agent Start above in this blog post).

You can also open the properties of SQL Server Agent in SQL Server Management Studio and check the service state and restart options. Right click the SQL Server Agent at the end of the list in Object Explorer and hit Properties to view or edit the agent properties.

Checking MS SQL Server Agent startup options

Configuring the Publisher

Once Distribution is configured, you can configure the Publisher. The Publisher should be configured on the main server (MSSQL01\MSSQLSERVER1) where the master database to be replicated is stored. Select Replication, right click Local Publications and, in the context menu, select New Publication.

Creating a new publication for MS SQL Server replication

New Publication Wizard opens.

Publication Database. Select the database you want to replicate (AdventureWorks2016 in this case). Hit Next for each step in the wizard to continue.

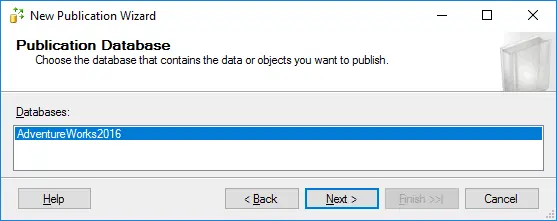

Selecting a publication database

Publication Type. For this step, you can select MS SQL Server replication types for a database. Let’s select transactional publication, which is a widely used type of replication.

Articles. Select the needed objects, such as tables, procedures, views, indexed views and user defined functions to publish as articles. It is possible to select replication of the custom fields in the tables and select article properties if needed. In the current example, some tables are selected as you can see on the screenshot below.

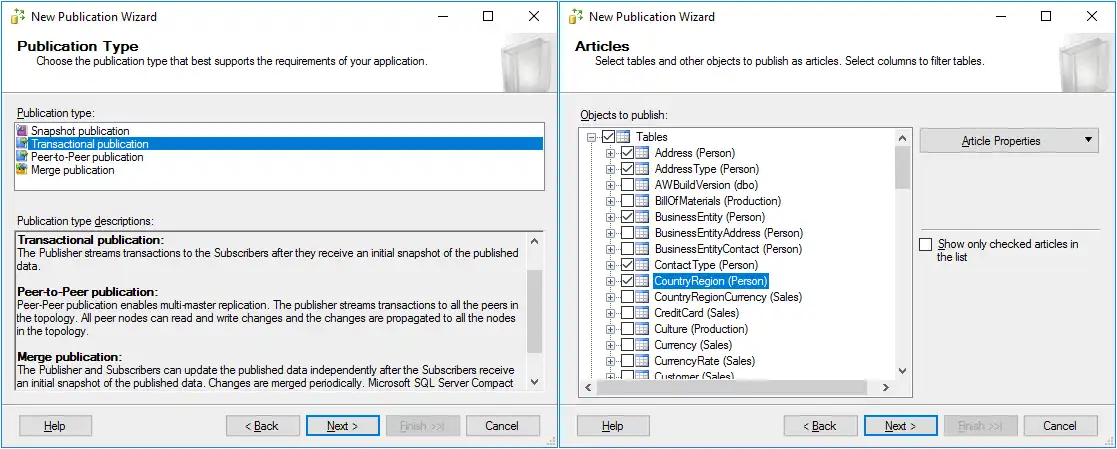

Selecting the transactional publication type and articles

Filter Table Rows. No filters are added in this example (this is the default configuration of filters). You can add filters if needed.

Snapshot Agent. For this step, you should specify when to run the Snapshot Agent. Let’s configure the Agent to run immediately. Tick the checkbox Create a snapshot immediately and keep the snapshot available to initialize subscriptions.

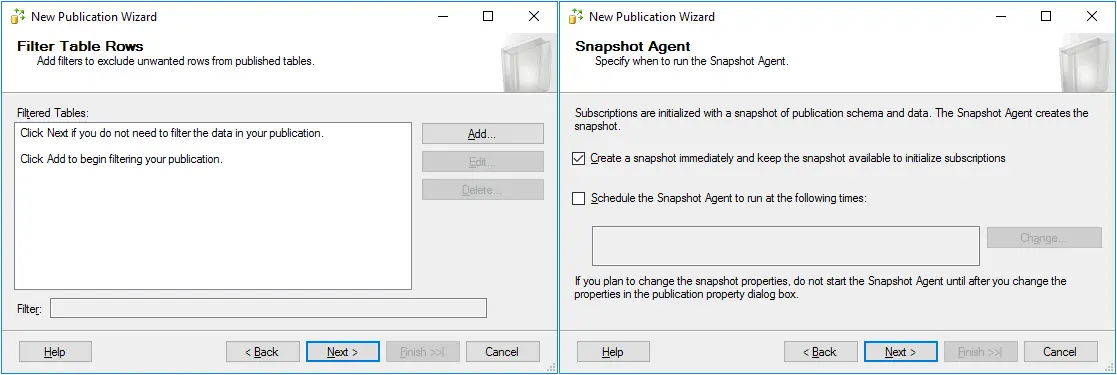

Filter options and Snapshot Agent options

Agent Security. Tick Use the security settings from the Snapshot Agent. Click the Security Settings button to select the account under which the Agent will run.

In the opened Snapshot Agent Security window, enter the credentials of the mssql Windows user you have created before. Select connect to the Publisher By impersonating the process account. Hit OK to save settings and go back to the wizard.

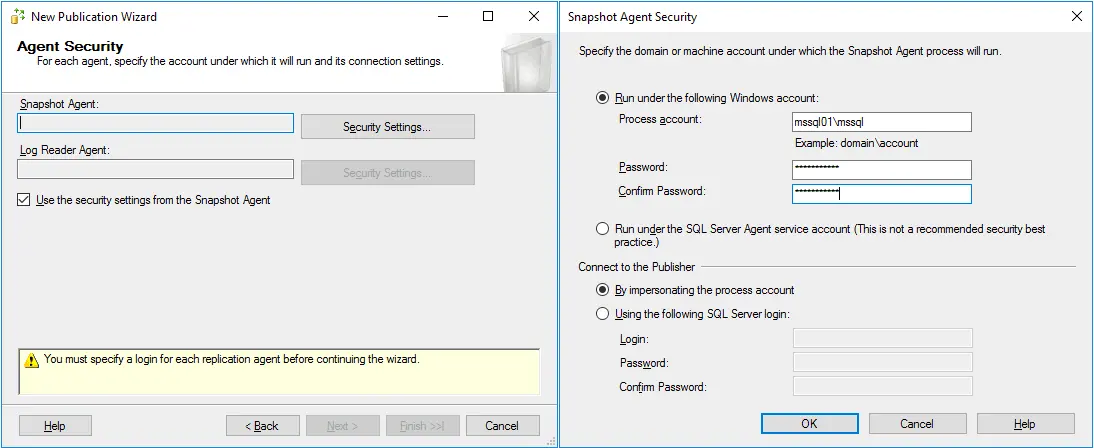

Configuring agent security options

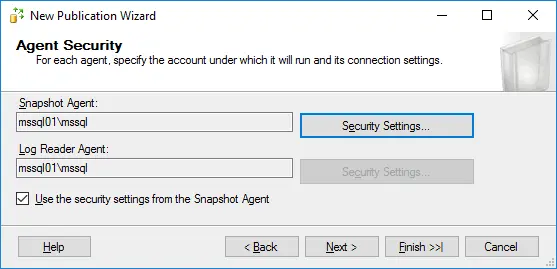

After defining the needed user, you can see this user in the Snapshot Agent and Log Reader Agent sections.

Agent security options are configured

Wizard Actions. Tick the upper checkbox to create the publication during the final step of the wizard.

Complete the Wizard. Check your publication configuration and hit Finish to create a new publication.

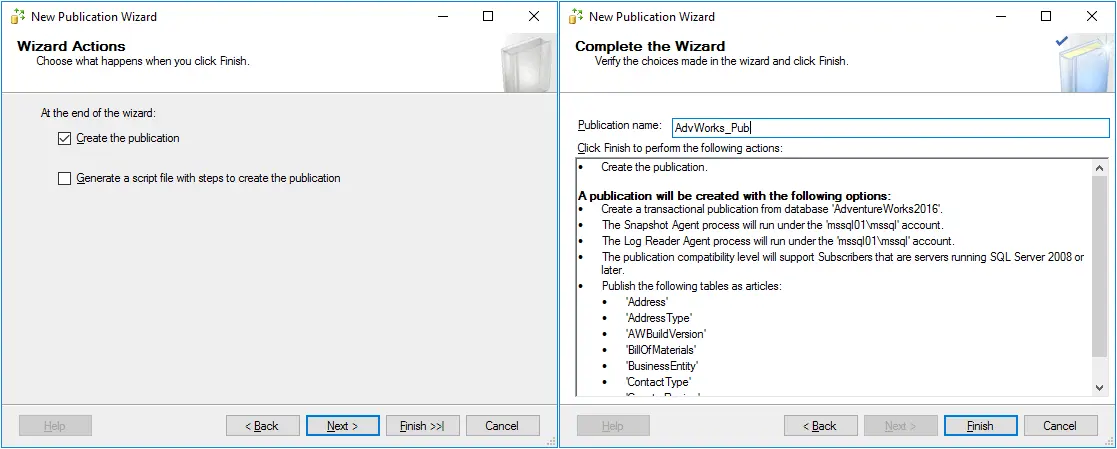

Selecting wizard actions and completing the wizard

In the Creating Publication window, you can monitor the progress of creating a new publication. Wait for a while and you should see the success status if everything has been done correctly.

Creating publication

The publication is now created and you can see the publication in Object Explorer by going to Replication > Local Publications.

The publication is created

Configuring the Subscriber

As you recall, MS SQL Server replication can be either pull or push replication. If you configure push replication, you should configure the Subscriber to run agents on the main database server (MSSQL01 in this case). If you configure pull replication, the Subscriber must be configured to run agents on the second machine (MSSQL02), i.e. the machine on which the database replica will be created. Let’s configure push replication and create a new subscription on the first MS SQL Server (MSSQL01\MSSQLSERVER1) where the master database resides.

In Object Explorer go to Replication, right click Local Subscriptions and, in the context menu, select New Subscriptions.

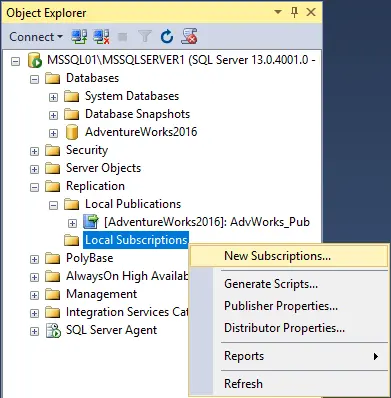

Creating a new subscription for MS SQL Server replication

The New Subscription Wizard opens.

Publication. Select the publication for which to create a new subscription. In our example, the name of the Publisher is MSSQL01\MSSQLSERVER1 and the publication name (that was created earlier) is AdvWorks_Pub. Hit Next for each step in the wizard to continue.

Distribution Agent Location. For this step, you have to select the replication type by selecting either push subscription or pull subscription. In our example, we want all agents to run on the source server side, hence, the first option is selected to create push subscription. It allows you to manage MS SQL Server replication centrally.

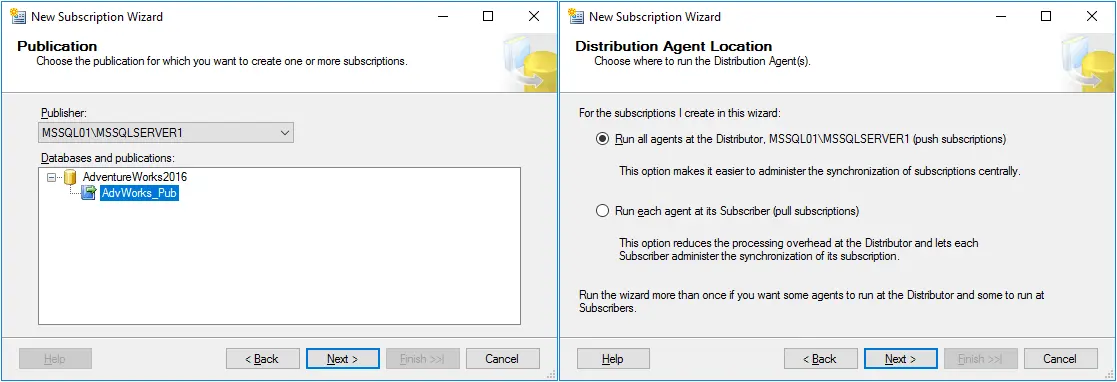

Selecting the publisher and distribution agent location

Subscribers. By default, the server on which you run the wizard (MSSQL01\MSSQLSERVER1 in this case) is displayed as the Subscriber and the subscription database is not defined. Let’s add a new subscriber and select a subscription database located on the second database server (MSSQL01\MSSQLSERVER2). Click Add Subscriber and, in the context menu, select Add SQL Server Subscriber.

In the popup window, enter the credentials for the second MSSQL Server instance (MSSQL01\MSSQLSERVER2 in our case) and hit Connect.

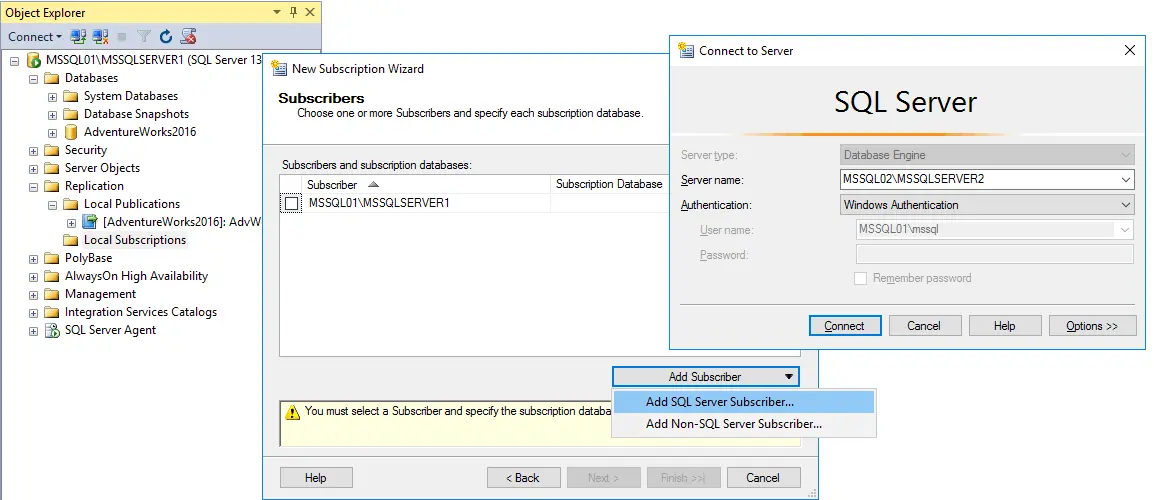

Adding MS SQL Server subscriber

Tick the checkbox of your second server on which your database replica will be stored (MSSQL02\MSSQLSERVER2) and, in the Subscription Database drop-down menu, select a new database or an existing database restored from a backup that will be used as a database replica. In our example, the AdventureWorks2016r was created on the second server by restoring the main (source) AdventureWorks2016 database from a backup to start replication. Replication is started by replicating only new data but not by copying the entire database after starting the replication process. Thus, AdventureWorks2016r is selected as a subscription database in the current example.

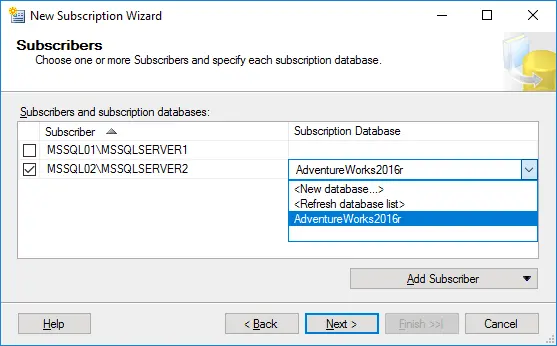

Selecting a subscriber and a subscription database for MS SQL Server replication

Distribution Agent Security. Click the button with three dots () and select the user and other security options for the Distribution Agent.

In the opened Distribution Agent Security window, set the Distribution Agent to run on the MSSQL01 host under the mssql user account. Enter the password for the mssql Windows user. Select Connect to the Distributor by impersonating the process account and select Connect to the Subscriber by impersonating the process account options. Hit OK to save settings.

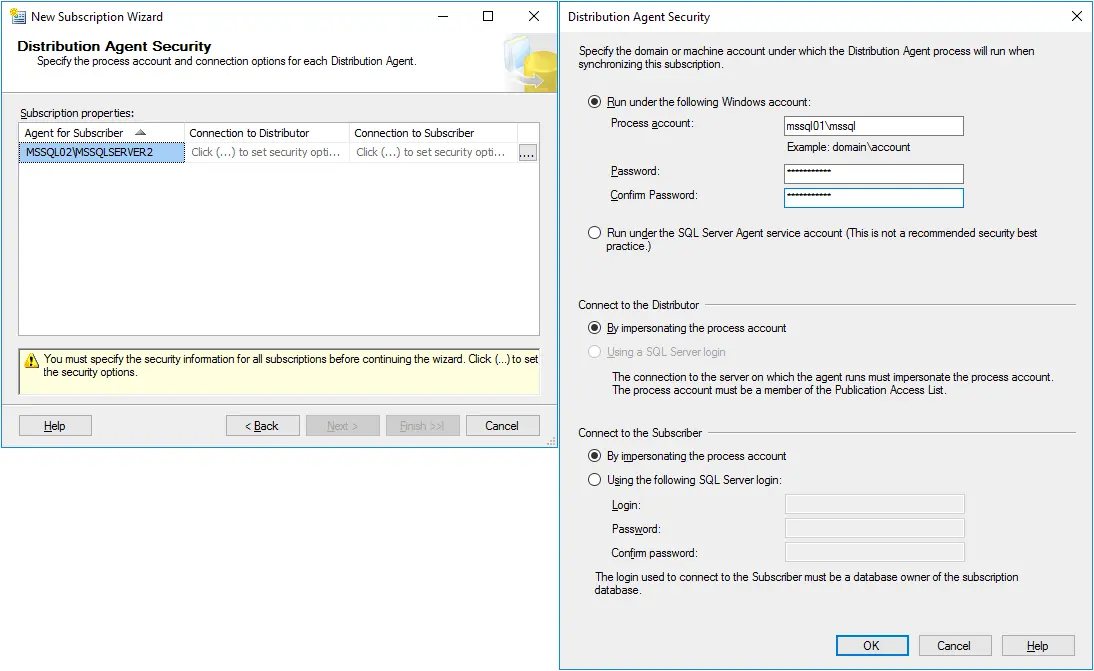

Distribution Agent security settings

Now your subscription properties are set.

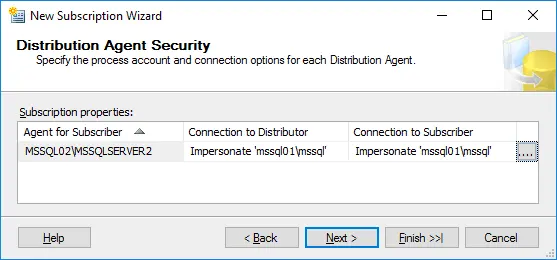

Distribution Agent security settings are configured

Synchronization Schedule. Select the Agent that is located on the Distributor to Run continuously for the current Subscriber.

Initialize Subscriptions. Tick the Initialize checkbox and in the drop-down menu select immediately for when to initialize subscription. You can also select the Memory Optimized option if needed.

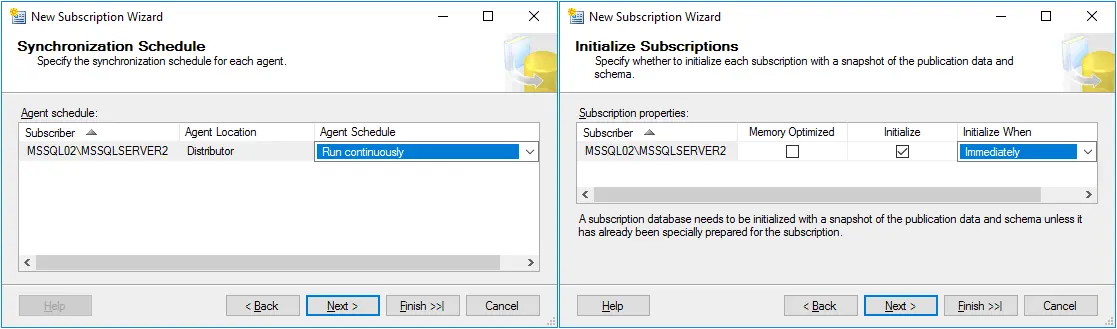

Synchronization schedule options and initialize subscription options

Wizard Actions. Select the upper checkbox to create the subscription(s) at the end of the wizard.

Complete the Wizard. You can check your subscriptions settings and hit Finish to create the subscription.

Selecting subscription wizard actions and completing the wizard

Wait for a while until the subscription is created. If you see the Success status, it means that the subscription was created successfully.

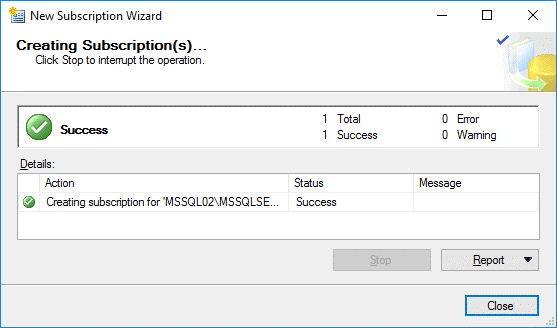

The progress of creating subscriptions and the action status

After configuring replication in SQL Server, three jobs are displayed in Object Explorer and you can see them by going to SQL Server Agent > Jobs.

MS SQL Server Agent jobs are created for MS SQL Server replication

Finalizing replication configuration

Once you have configured the Distributor, the Publisher and the Subscriber, you can check the MS SQL Server replication status.

On the first server (MSSQL01\MSSQLSERVER1), launch the replication monitor to see the MS SQL Server replication status. In SQL Server Management Studio, select your MS SQL Server instance (MSSQLSERVER1), go to Replications, right click Local Publications and, in the context menu, select Launch Replication Monitor.

Launching the Replication Monitor to check the MS SQL Server replication status

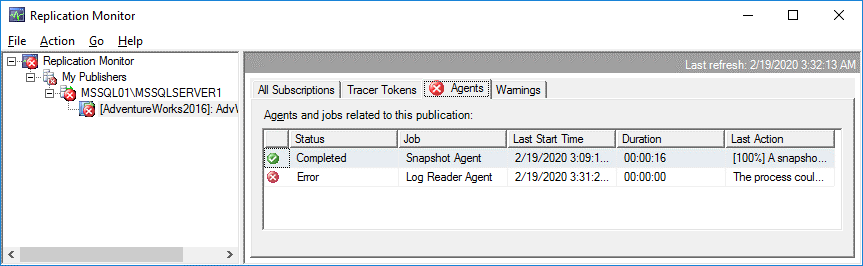

There is a Log Reader Agent error in our case. To see error details, select the source database (the Publisher) in the left pane, select the Agents tab in the right pane and double click the error name.

The error status of the Log Reader Agent for MS SQL Server replication

In the opened window, you can see the agent history and error messages. The error messages are:

The process could not execute sp_replcmds on MSSQL01\MSSQLSERVER1. Source: MSSQl_REPL. Error number: MSSQL_REPL20011).

Cannot execute as the database principal because the principal "dbo" does not exist, this type of principal cannot be impersonated, or you do not have permission. (Source: MSSQLServer, Error number: 15517).

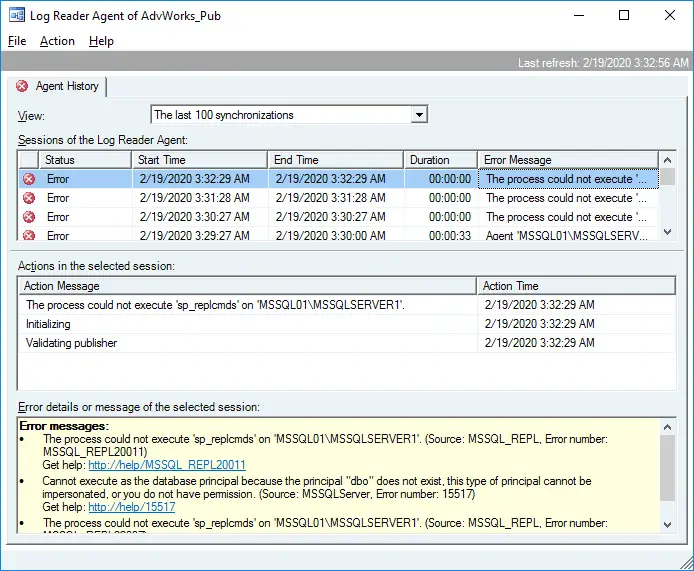

Viewing the Log Reader Agent history to fix errors for performing MS SQL Server replication

The second error message suggests that some kind of permission is missing. Let’s fix this error.

Create a new query in MS SQL Management Studio and execute this query. In the main window, click the New Query button.

In the SQL query section of the main window enter the following query:

USE AdventureWorks2016

GO

EXEC sp_changedbowner 'sa'

GO

Click the Execute button.

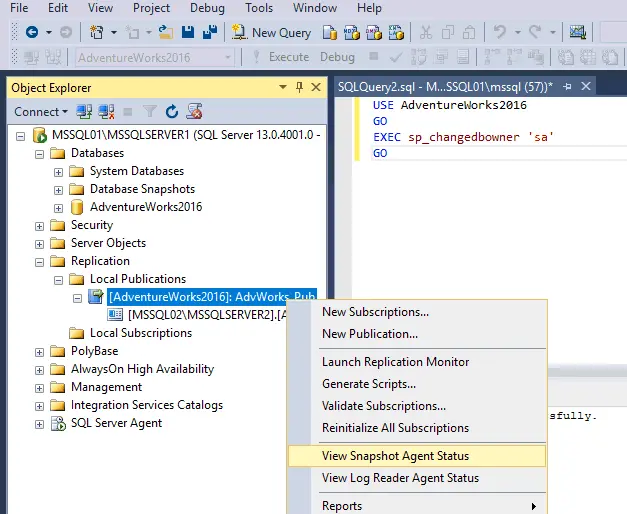

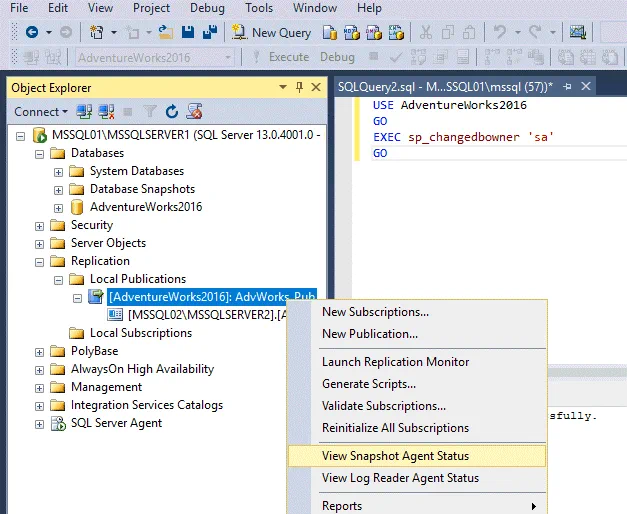

Viewing Snapshot Agent Status

Command(s) completed successfully.

Next, go to MSSQL01\MSSQLSERVER1 > Replication > Local Publications > [AdventureWorks2016]: AdvWorks_Pub. Right click the publication name and, in the context menu, select View Snapshot Agent Status. You can click Action > Refresh to refresh the status and Reinitialize All Subscriptions to apply a snapshot to each Subscriber.

Now everything is resolved, no errors are displayed and MS SQL Server replication should work.

The running status of the subscription

Checking How Replication Works

Let’s see MS SQL Server replication in action. View the content of a table of the AdventureWorks2016 database stored on the first MS SQL server (MSSQL01\MSQLSERVER1). In our example, we are going to select all data from the Person.AddressType table. In order to do this, execute the query:

USE AdventureWorks2016;

GO

SELECT *

FROM Person.AddressType

;

The result of executing the query is displayed on the screenshot.

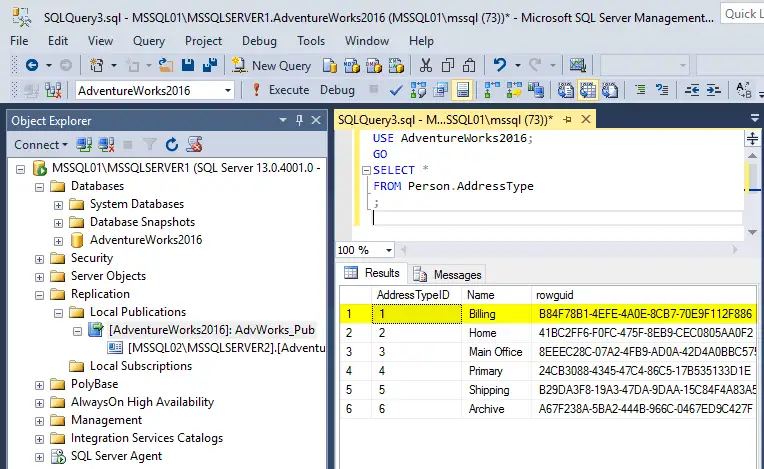

Viewing the content of the table of the master database after configuring MS SQL Server replication

Execute a similar query on the second server to display all data of the Person.AddressType of the AdventureWorks2016r database stored on MSSQL02\MSSQLSERVER2.

USE AdventureWorks2016r;

GO

SELECT *

FROM Person.AddressType

;

As you can see on the screenshots above and below, the contents of the Person.AddressType is identical on both databases (a source database on the first server and the target database that is a database replica on the second server).

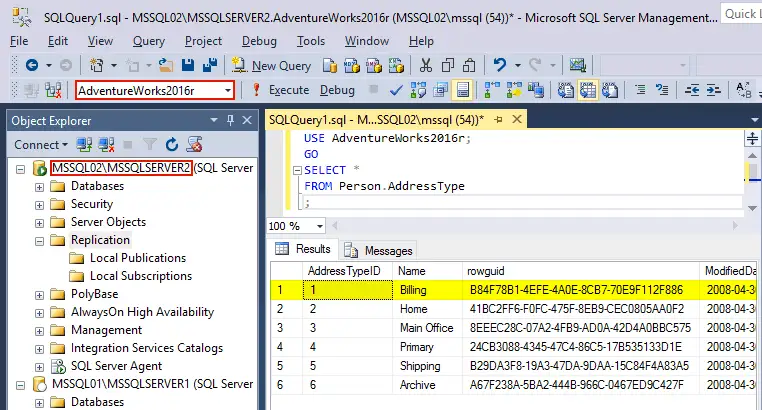

Viewing the content of the table of the second database that will be used as a database replica

Let’s delete one row in the PersonAddressType table from the AdventureWorks2016 database (source) on the first server (MSSQL01\MSSQLSERVER1). Run the query to delete a row that contains ‘Billing’ in the name and to display the contents of the table after that:

DELETE FROM Person.AddressType WHERE Name='Billing';

SELECT * FROM Person.AddressType;

Deleting the line in the table of the master database after configuring MS SQL Server replication

As you can see, the first row with the AddressTypeID 1 and name ‘Billing’ was deleted from the Person.AddressType table in the AdventureWorks2016 database on the MSSQL01 machine.

Transactional replication is running. Let’s check the contents of the Person.AddressType table in the AdventureWorks2016r database on the MSSQL02 machine. Execute a similar query as above once again to see the contents of the table:

USE AdventureWorks2016r;

GO

SELECT *

FROM Person.AddressType

;

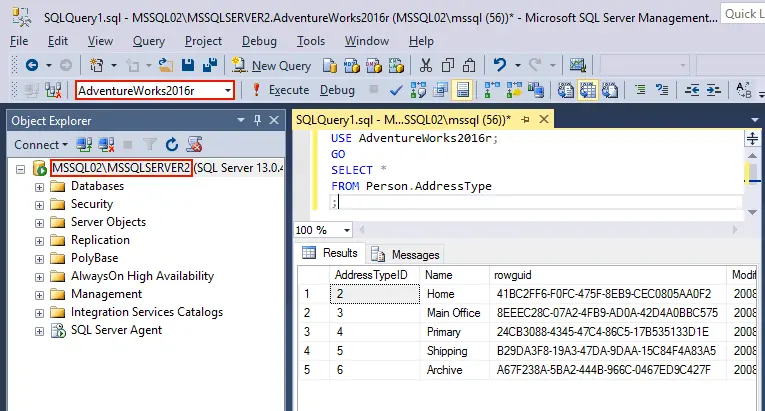

As a result of replication, the first line was also deleted from the Person.AddressType table in the secondary database that acts as the database replica (AdventureWorks2016r). You can see the results on the screenshot below.

The first line is deleted from the table in the database replica as a result of running transactional replication

Database replication in SQL server is working properly.

Conclusion

This blog post covered replication in SQL server and MS SQL server replication types. MS SQL Server replication is a useful feature that allows you to create a copy of your database that can be used for recovery after disaster, building distributed databases and synchronizing data between database servers that can infrequently connect to each other. There are four types of MS SQL Server replication — snapshot, transactional, peer-to-peer and merge replication. As transactional replication is widely used, we have configured this MS SQL Server replication type in this blog post. The Distributor, the Publisher and the Subscriber must be configured to make database replication work. The Subscriber can be configured on a source server (push replication) and target server (pull replication). Now you know what replication in SQL Server is and how to configure database replication. Database replication is a useful feature; however, you should consider using both replication and backup of MS SQL databases to increase chances of a successful database recovery.

How to Configure MS SQL Server Replication: Complete Walkthrough
5 (100%) 2 votes

Share:
