Installing Android on VMware ESXi: A How-To Guide

Android is a very popular and prolific operating system on mobile devices such as smartphones and tablets. Most of the time, there is no practical reason to install Android on a physical computer, but there may be some cases when you need to run Android on a virtual machine (VM), for example, when developing applications for Android and testing them. Fortunately, you can install Android on VMware Workstation, VMware Player, VMware ESXi, and VirtualBox. Once you install Android on VMware Workstation or ESXi, you will get all features available for Android installed on a smartphone. The advantages of using an Android VMware VM include the possibility of creating snapshots and cloning a VM during the development or testing process. Today’s blog post explains how to install Android on VMware ESXi step by step with screenshots.

With just a few clicks, you can download the full-featured free trial of NAKIVO Backup & Replication to experience fast, reliable, and powerful data protection in your environment!

Prepare Your Environment

Android 8.1 and VMware ESXi 6.5 managed by vCenter 6.5 will be explored in today’s blog post. You can read how to install ESXi, configure ESXi and deploy vCenter in our blog posts, including the blog post about VMware home lab. You can create an Android VMware VM on a standalone ESXi host without vCenter. If you need to install Android on VMware Workstation to use a VM on a personal computer, you can use the algorithm explained in this blog post since it is nearly the same for both VMware ESXi and VMware Workstation.

Download the Android Installer

First, download the Android installation image. In this example, we are using the 64-bit version of Android Oreo (the third release). While the ARM and ARM64 architecture is used on most smartphones and tablets, the image applied in this example is ready for devices using the x86-64 architecture. You can also see all available images for different architectures on the official web site of the Android project.

Create a New Virtual Machine

Open VMware vSphere Client in a web browser, go to Storage, select a datastore connected to the ESXi host on which you plan to install the VMware Android VM, select the Files tab, and upload the installation ISO image to the selected datastore (click Upload Files and select the needed file). In this example, the android-x86_64-8.1-r3.iso file is uploaded to the SSD2 datastore that is connected to the ESXi host whose IP address is 10.10.10.74.

How to install Android on VMware – uploading the ISO image on an ESXi datastore

Go to Hosts and Clusters in VMware vSphere Client, select the necessary ESXi host (10.10.10.74 in this case), click Actions and in the displayed menu, hit New Virtual Machine.

Creating a new VM to install Android on VMware ESXi

The New Virtual Machine wizard is opened.

1. Select a creation type. Choose Create a new virtual machine. Click Next to continue to the next step.

Creating a new VM to install Android on VMware

2. Select a name and folder. Enter a name for the new virtual machine, for example, Test-Android. Select a datacenter and a VM folder in vCenter as a location for the VM.

Entering a name of a VM to install Android on VMware

3. Select a compute resource. Select the destination ESXi host on which a VMware Android VM must be run. In our case, we are using the 10.10.10.74 ESXi host.

Selecting a compute resource for the Android VMware VM

4. Select storage. Select a datastore in which to store the configuration and disk files of the Android VMware VM. You can leave the default value for the VM storage policy. If you see the compatibility checks succeeded message, go to the next step of the wizard.

Selecting storage for the Android VMware VM

5. Select compatibility. Select the required hardware version for your Android VMware VM. The higher the VM version you select, the better VM performance you get. The newest VMware features are available for the latest hardware versions of virtual machines. The Android version that is installed on VMware ESXi in this example is compatible with ESXi 6.5 VM hardware version. Hence, ESXi 6.5 and later is selected as the virtual hardware version.

Selecting the virtual hardware compatibility for the Android VMware VM

6. Select a guest OS. A selected guest operating system allows the wizard to provide the appropriate default VM settings for installing an operating system. As Android is based on a modified Linux Kernel version, you can select Linux as the guest OS family. The guest OS version may be selected as Other 3.x or later Linux (64-bit). If you wish to install a 32-bit version of Android on a VMware VM, select the appropriate (32-bit) version of the guest OS.

Select Linux as the OS for the Android VMware VM you are creating

7. Customize hardware. Configure hardware for the virtual machine. Edit the following settings for your Android VMware VM.

CPU: 1 (1 CPU, 1 core)

Memory: 2 GB

New Hard Disk: 8 GB (or more)

In the New CD/DVD Drive settings, select the Datastore ISO file option in the drop-down menu, select the Android ISO installation image file (android-x86_64-8.1-r3.iso that was uploaded to the ESXi datastore in this case), and tick the Connect At Power On checkbox. Other settings may have default values.

Hardware customization for the new Android VMware VM

8. Ready to complete. Check your settings, and if everything is correct, hit OK to finish the new Android VMware VM creation.

Checking the configuration summary for the Android VMware VM

Install Android on VMware ESXi

After creating a new virtual machine, power on the VM and boot from the virtual ISO image (android-x86_64-8.1-r3.iso) you selected to use by a virtual CD/DVD drive during the Android VMware VM creation.

Once the VM has booted from a virtual DVD disk, on the boot screen, select the third option with the arrow keys: Installation – Install Android-x86 to harddisk. Then press Enter to boot.

Install Android on VMware – booting the android installer

Choose Partition. When the Android installer is loaded, on the Choose Partition screen select Create/Modify partitions and hit OK.

Install Android on VMware – creating a new partition

Confirm. Select No when you see the “Do you want to use GPT?” question.

Install Android on VMware without using GPT

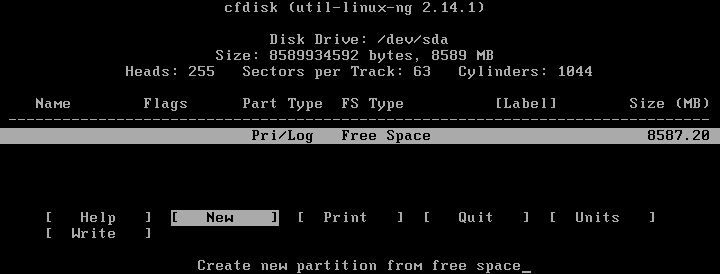

The cfdisk utility is now opened. Select New to create a new disk partition.
